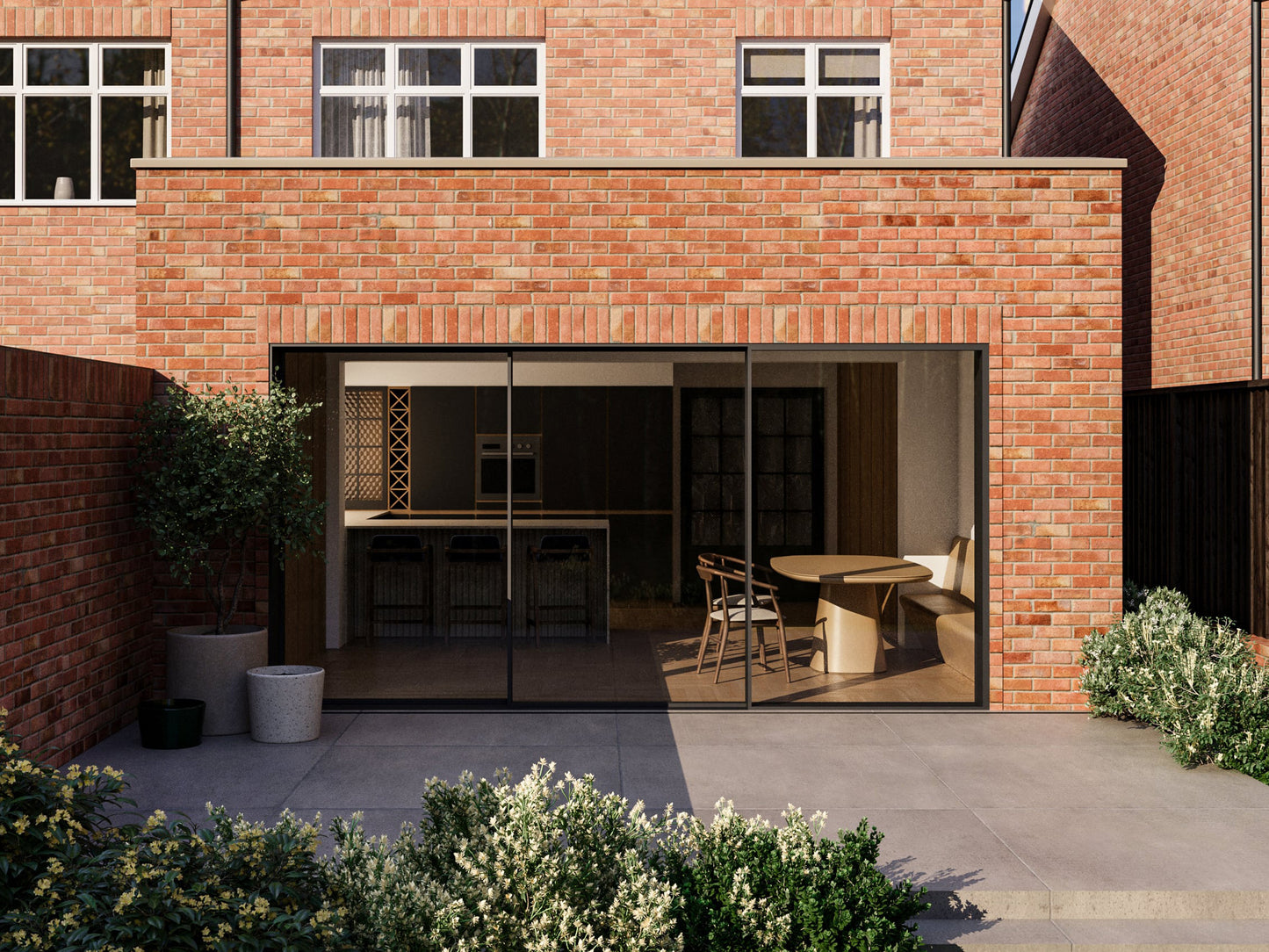

• A modern two-storey house with a red brick exterior and a back extension, featuring large sliding glass doors opening to a patio and garden. The house has a neatly landscaped backyard with green shrubs and a wooden fence on both sides.
  • A modern two-storey house with a red brick exterior and a back extension, featuring large sliding glass doors opening to a patio and garden. The house has a neatly landscaped backyard with green shrubs and a wooden fence on both sides.

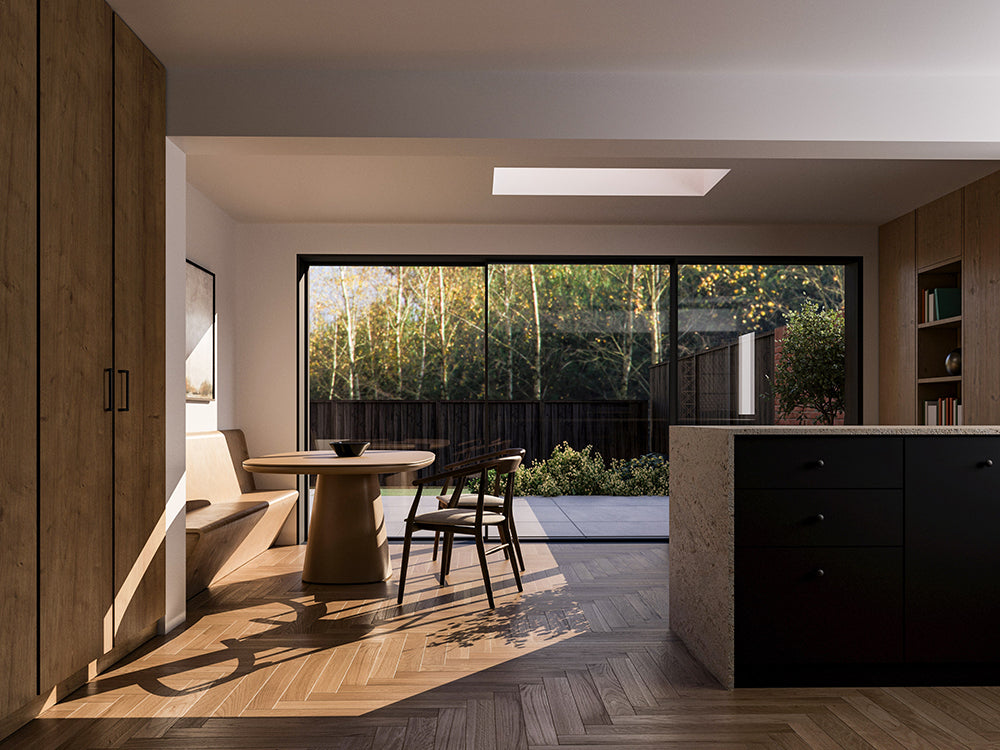

  • Interior view of a modern, open-plan living space with large sliding glass doors leading to the patio and garden. The room features light wood herringbone flooring, a round wooden dining table with chairs, a built-in bench, tall wooden cabinets on the left, and a kitchen island with dark cabinetry and a stone countertop on the right. Natural light streams in through the glass doors and a skylight overhead, creating a bright and airy atmosphere.

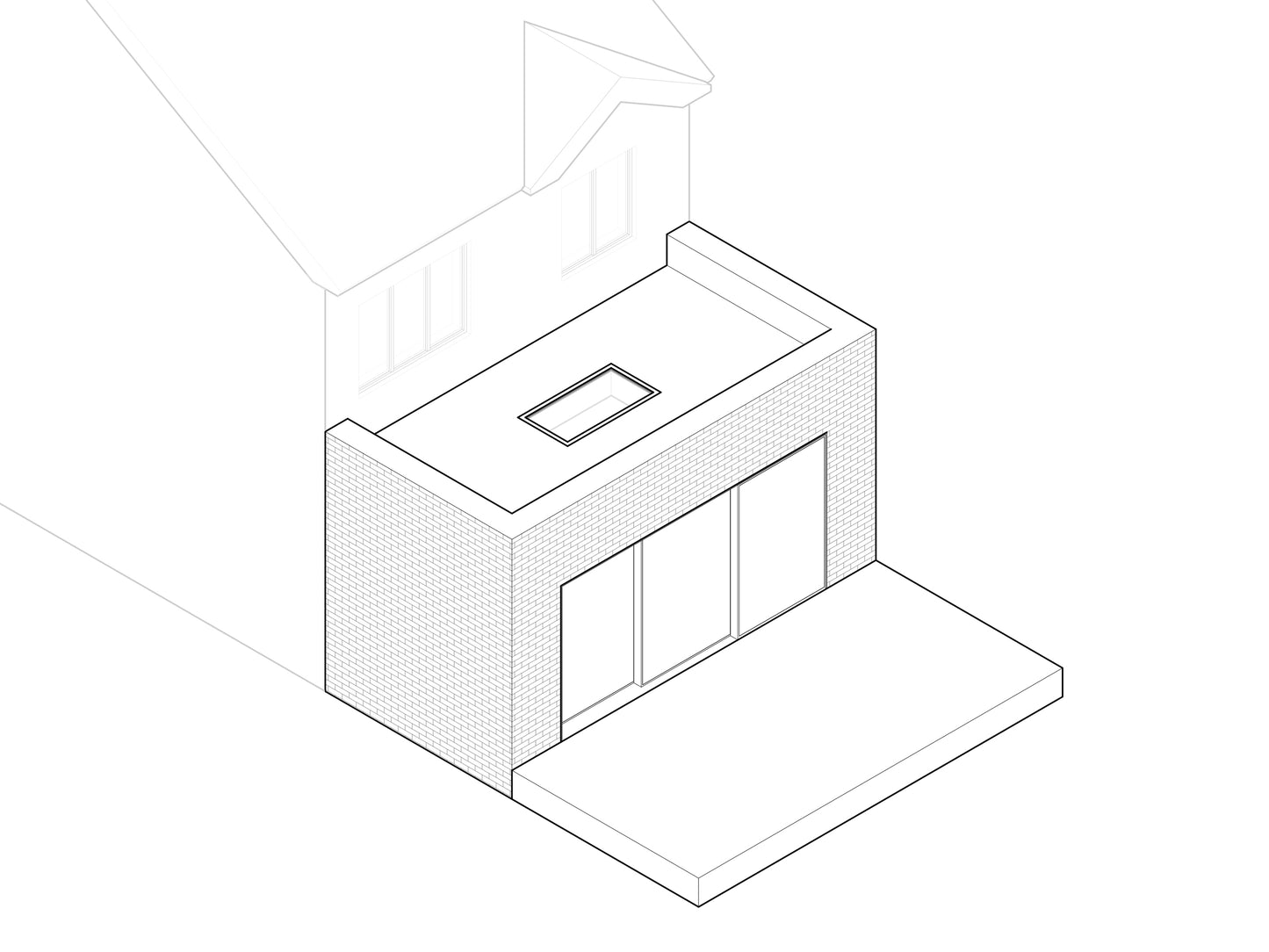

  • A minimalist architectural drawing of a 3D model of a house extension. The extension features a flat roof with a skylight in the centre. The exterior walls are made of brick, and the front of the extension includes large sliding glass doors that open onto a small patio. The original house is partially visible in the background, showing the roof and a couple of windows on the second floor.

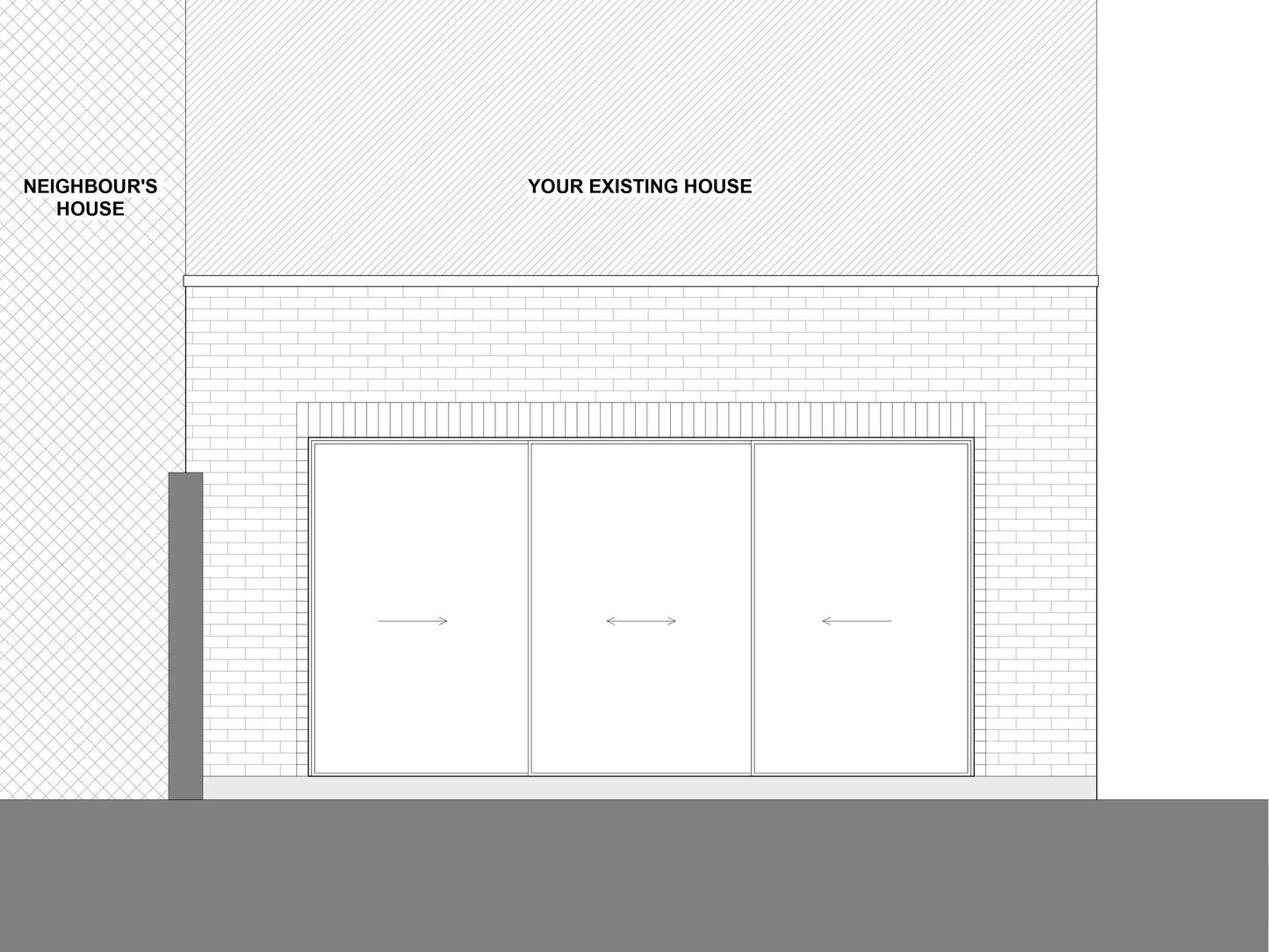

  • Architectural elevation drawing showing the front view of a rear house extension, labeled 'Your Existing House' and 'Neighbour's House.' The extension features large sliding glass doors and a brick exterior.

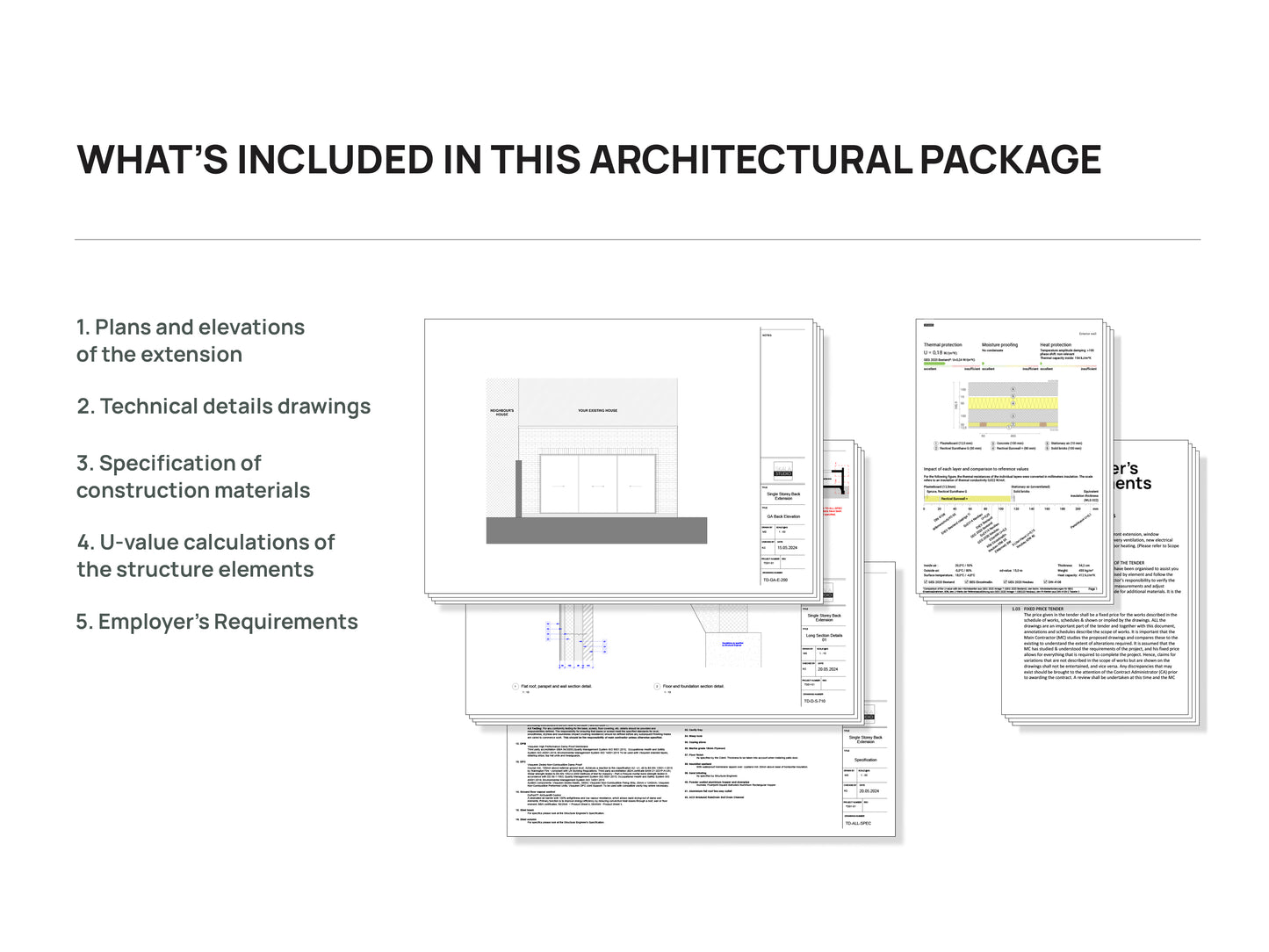

  • A presentation slide titled 'What’s Included in This Architectural Package' with a list of five items: 1. Plans and elevations of the extension, 2. Technical details drawings, 3. Specification of construction materials, 4. U-value calculations of the structure elements, 5. Employer’s Requirements. The slide also includes thumbnail images of various technical and architectural documents.
  • A modern two-storey house with a beige brick exterior and a back extension, featuring large sliding glass doors opening to a patio and garden. The house has a neatly landscaped backyard with green shrubs and a wooden fence on both sides.

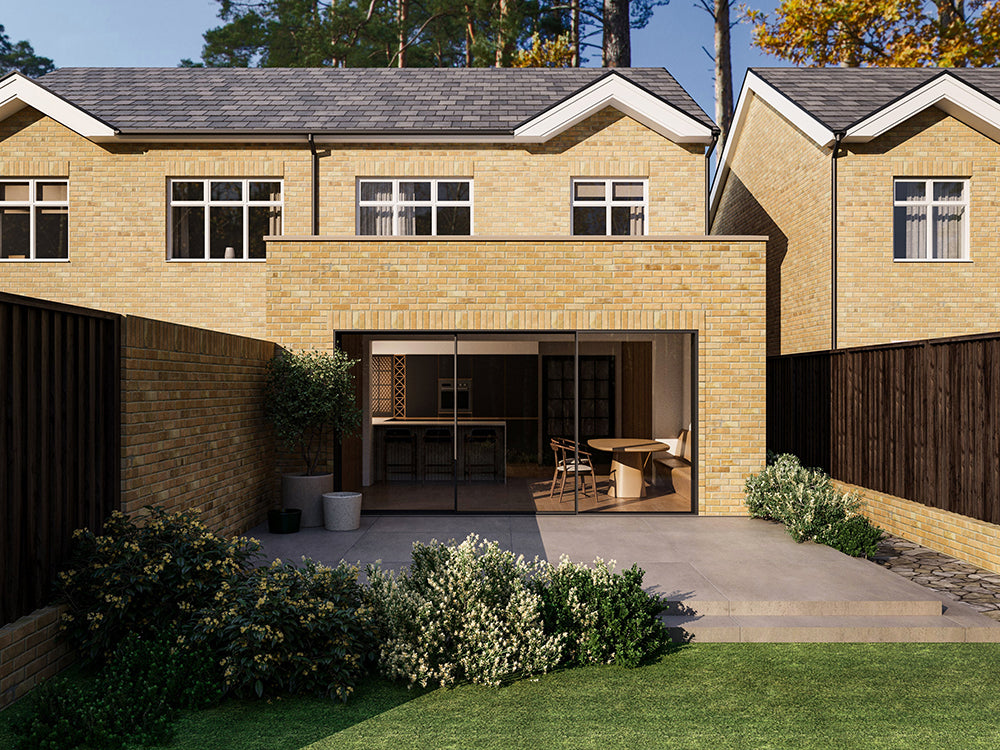

  • A modern two-storey house with a yellow brick exterior and a back extension, featuring large sliding glass doors opening to a patio and garden. The house has a neatly landscaped backyard with green shrubs and a wooden fence on both sides.
1 8

Skala Studio

Classic

Classic

£2,950.00 GBP
£2,950.00 GBP
Sale Sold out
Tax included.
Colour

Specifics: Flat Roof, Brick Cladding, Sliding Patio Door, Rooflight, Full Cavity Masonry Construction

Please note: the maximum depth of the extension is 3m. The maximum width of the extension is the width of your house.

Designed by ARB/RIBA Chartered Architects at
Skala Studio Ltd

How it works?

1. Read our checklist and purchase your selected architectural drawing package.

2. Add the dimensions as annotated on the drawings.

3. Send the drawings to your engineer for structural calculations, then submit them for Building Control approval, along with the thermal calculations (included in our packages).

4. Select a contractor, review the drawings and details. Choose your floor and wall finishes, and decide where you want all your sockets, light switches, and lights. Annotate this on the printed plans together with the contractor.

5. Inform Building Control and provide your builder's details. Begin construction with regular inspections to ensure a high-quality, compliant extension.

What is included?

1. Detailed architectural plans.
2. Elevations.
3. Technical details.
4. Technical specifications.
5. Employer's requirements:
a) Contractor-client relationship.
b) MEP (Mechanical, Electrical, and Plumbing) guidelines.
c) Electrical fixtures specification.
6. Thermal calculations.

What to check before you buy?

✓ Ensure Permitted Development Rights
In some rare cases, Permitted Development rights can be removed or altered. Check your council's website to see if your property is listed in Article 4 Directions, located in a Green Belt, or in a Conservation Area.

✓ Ensure Sufficient Space
The extension and any existing outbuildings must not exceed 50% of the land around the original house. Ensure this condition is met before purchasing our packages. The extension's width must not exceed the house's width, and the depth can be up to 3m.

✓ Check for Listed Building Status
If your home is a Listed Building, you must apply for Listed Building Consent. Contact us if you wish to work on a listed property. Ensure all modifications adhere to local heritage guidelines and seek expert advice if needed.

✓ Read Licence Agreement
Understand the terms and conditions of use for our architectural drawing packages. This agreement outlines your rights, limitations, and responsibilities to ensure proper and legal usage.

How much will it cost to build?

Coming soon! We are in the process of quoting all of our extension packages. As soon as we receive the quotes, we will provide you with a price guideline.

Please be mindful that a significant portion of the cost depends on your choices, such as paint, floor finish, patio finish, and window supplier. We will aim to give you an average cost for all of these elements.

Builders in our network

The list below includes builders we've worked with or who have been recommended to us. We've conducted initial checks on their records via Companies House. Please conduct your own research, verify their current insurance, and choose a contractor you feel comfortable with.

Note: We do not take responsibility for the contractors' work but aim to assist with initial contacts and choices.

Artdom Design LTD
Company number: 14350754
Work Area: North London, West London, Surrey

Bon-Dar Building Solutions
Company number: 14936233
Work Area: London S, SM and KT Postcodes

Martyn Building
Company number: 14541282
Work Area: London N and NW Postcodes

SP Refurbishment and Construction
Company number: 11757207
Work Area: London SE Postcodes

WLCS
Company number: 11206587
Work Area: London W Postcodes
